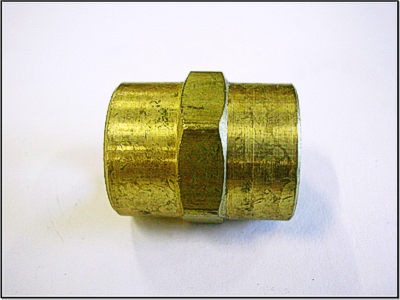

Couplings – Female NPT

Part No

Pipe Thread
103-2 1/8” (3.18mm) x (3.18mm) 1/8”
103-4 1/4” (6.35mm) x (6.35mm) 1/4”
103-6 3/8” (9.53mm) x (9.53mm) 3/8”
103-8 1/2” (12.7mm) x (12.7mm) 1/2”

Hex Head Plugs NPT

Part No

Pipe Thread
109-2 1/8” (3.18mm)
109-4 1/4” (6.35mm)
109-6 3/8” (9.53mm)
109-8 1/2” (12.7mm)

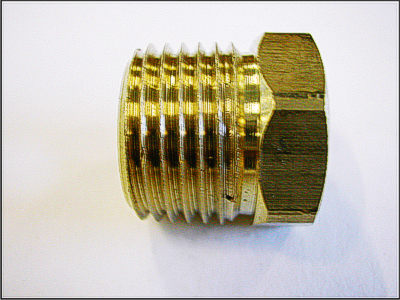

Reducing Bush NPT

Part No

Pipe Thread
110-4 1/4” (6.35mm) x (3.18mm) 1/8”
110-6 3/8” (9.53mm) x (6.35mm) 1/4”
110-6A 3/8” (9.53mm) x (3.18mm) 1/8”
110-8 1/2” (12.7mm) x (9.53mm) 3/8”
110-8A 1/2” (12.7mm) x (6.35mm) 1/4”
110-8B 1/2” (12.7mm) x (3.18mm) 1/8”
110-12 3/4” (19.05mm) x (12.7mm) 1/2”
110-12A 3/4” (19.05mm) x (9.53mm) 3/8”
110-12B 3/4” (19.05mm) x (6.35mm) 1/4”
110-12C 3/4” (19.05mm) x (3.18mm) 1/8

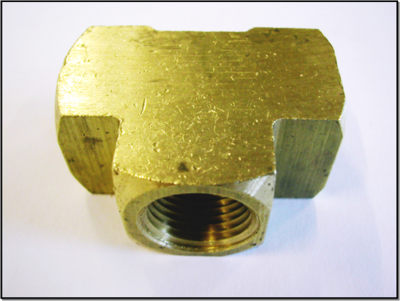

Equal Tee Female NPT

Part No

Pipe Thread
112-2 1/8” (3.18mm)
112-4 1/4” (6.35mm)
112-6 3/8” (9.53mm)
112-8 1/2” (12.7mm)

Elbows 90deg. Female NPT

Part No

Pipe Thread
114-2 1/8” (3.18mm) x (3.18mm) 1/8”
114-4 1/4” (6.35mm) x (6.35mm) 1/4”
114-6 3/8” (9.53mm) x (9.53mm) 3/8”
114-8 1/2” (12.7mm) x (12.7mm) 1/2”

Hex Nipples NPT

Part No

Pipe Thread
122-2 1/8” (3.18mm) x (3.18mm) 1/8”
122-4 1/4” (6.35mm) x (6.35mm) 1/4”
122-6 3/8” (9.53mm) x (9.53mm) 3/8”
122-8 1/2” (12.7mm) x (12.7mm) 1/2”

Reducing Hex Nipples NPT

Part No

Pipe Thread
122-4A 1/4” (6.35mm) x (3.18mm) 1/8”
122-6A 3/8” (9.53mm) x (6.35mm) 1/4”
122-8A 1/2” (12.7mm) x (9.53mm) 3/8”
122-8B 1/2” (12.7mm) x (6.35mm) 1/4”

Hose Nipple Hose x Male NPT

Part No

Pipe Thread
9203 3/16” (4.76mm) x (3.18mm) 1/8”
9204 1/4” (6.35mm) x (3.18mm) 1/8”
9604 1/4” (6.35mm) x (9.53mm) 3/8”
9205 5/16” (7.94mm) x (3.18mm) 1/8”
9405 5/16” (7.94mm) x (6.35mm) 1/4”
9605 5/16” (7.94mm) x (9.53mm) 3/8”
9206 3/8” (9.53mm) x (3.18mm) 1/8”
9406 3/8” (9.53mm) x (6.35mm) 1/4”
9606 3/8” (9.53mm) x (9.53mm) 3/8”
9806 3/8” (9.53mm) x (12.7mm) 1/2”
9408 1/2” (12.7mm) x (6.53mm) 1/4”
9608 1/2” (12.7mm) x (9.53mm) 3/8”
9805 5/16” (7.94mm) x (12.7mm) 1/2”
9808 1/2” (12.7mm) x (12.7mm) 1/2”

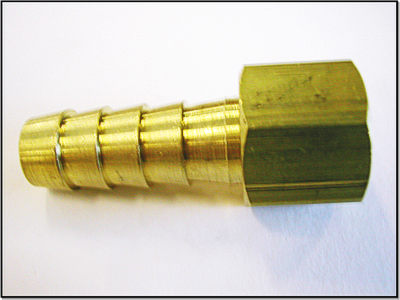

Hose Nipple Hose x Female NPT

Part No

Pipe Thread
9040-A 1/4” (6.35mm) x (6.35mm) 1/4”
9040-B 5/16” (7.94mm) x (6.35mm) 1/4”
9040-C 3/8” (9.53mm) x (6.35mm) 1/4”
9040-E 5/16” (7.94mm) x (3.18mm) 1/8”
9040-F 3/8” (9.53mm) x (9.53mm) 3/8”
9040-G 3/8” (9.53mm) x (3.18mm) 1/8”
9040-H 3/8” (9.53mm) x (9.53mm) 3/8”
