HOSE-END SWIVELS

Sample Installations

Design Features

Full-Circle offers a complete line of swivel connectors designed for use with thin to viscous liquids and liquefied gases.

Straight-through hose end swivels allow the filler valve to rotate 360-degrees. This enables the driver to make tank connections without fighting the hose. It also prevents hose twisting upon reel-up.

For bulk-head use, the 90-degree swivel allows for use of a shorter transfer hose and enables the operator to safely sweep the hose to one side for proper, out of the way stowage.

The design is ideally suited for hose reel use as the sealed high load ball bearing can tolerate misalignment problems that could cause product leakage in other swivel types. The tri-directional movement of the three-piece seal package continually compensates for eccentric movement.

The ZERO maintenance design is of critical importance, especially for loading/unloading arms that must be constructed high in the air for railroad tankcar transfer operations.

Safety First

All swivels produced by Full-Circle for LP-GAS, Ammonia and Flammable liquids are listed by the Underwriters Laboratories and are designed and tested in accordance with the U.L.-567 Standard, your assurance that the product has been tested to a Standard of Safety.

No Maintenance Design

All Full-Circle swivels utilize a sealed high load ball bearing. No greasing or lubrication is ever required.

No rotating rubber seals

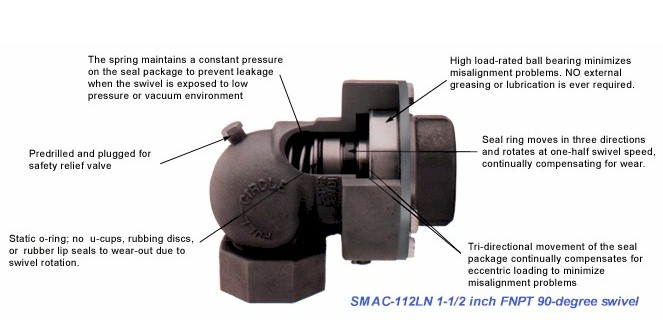

All Full-Circle swivels incorporate the SUPERSEAL™ mechanical seal. This PATENTED design allows the seal ring to "float" between two metallic seals. While in operation, the seal ring rotates at one-half the swivel rotation speed. The tri-directional movement of the seal components allows for continuous adjustment due to vibration, misalignment, and temperature extremes. Upon depressurization, the seal spring maintains a constant force on the seal package, preventing product leakage in ZERO to low pressure environments.

Misalignment minimised

All Full-Circle swivels utilize a radial contact ball bearing with extremely high load ratings. The bearing is sealed for life and requires NO periodic lubrication. The ball bearing completely supports the rotating portion of the swivel to ensure smooth and easy movement.

Field replaceable components

All Full-Circle swivels are designed so that replacement parts can be installed simply and easily in the field with no special tools required.

Experience

Full-Circle's depth of product engineering is the result of over 60 years of design and manufacturing expertise in the high pressure, rotating equipment field, for thin liquids and liquefied gases.
