SERIES MINI-LUX ART. 3830
Mini ball valve sand blasted and chrome plated from 1/8” to 1/2”.
Application
- Assembly in rigid pipe system
- Nominal pressure (PN) in bar
- KV: flow coefficient in m3/h at differential pressure of 100 kPa
- Temperature range: -20°C +90°C
- Direction of flow: both directions
Specifications
- Item: 3830
- Thread ends: Female
- Orifice: From mm 6 to mm 15
- Manoeuvre:90° rotation of the lever

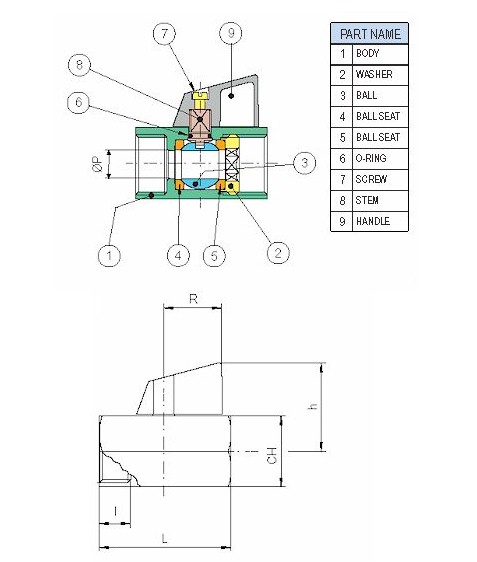

DN |
P |
CH |
I |
h |
L |
R |
Kv |
PN |
Kg |
|
⅛ | 6 | 8 | 21 | 8 | 29 | 41 | 20,5 | 4,3 | 10 | 0,11 |
¼ | 8 | 8 | 21 | 10 | 29 | 41 | 20,5 | 4,3 | 10 | 0,10 |
⅜ | 10 | 8 | 21 | 10 | 29 | 41 | 20,5 | 2,7 | 10 | 0,09 |
½ | 15 | 10 | 25 | 11 | 31 | 46 | 20,5 | 5,4 | 10 | 0,13 |
SERIES EURO-SFER ART. 6710
Full bore ball valve in dezincification proof material from 1/2” to 2”.
Application
- Assembly in rigid pipe system
- Nominal pressure (PN) in bar
- KV: flow coefficient in m3/h at differential pressure of 100 kPa
- Vacuum: Maximum 10-3 torr.
- Temperature range: -20°C +160°C
- Direction of flow: both directions
Specifications
- Item: 6700
- Thread ends: Female
- Orifice: From mm10 to mm 50
- Manoeuvre:90° rotation of the lever
DN |
I |
L |
H |
CH |
R |
h |
Kv |
PN |
Kg |
|
¼ | 8 | 11 | 51,5 | 23 | 20 | 98 | 44,5 | 5,4 | 64 | 0,15 |
⅜ | 10 | 11,4 | 51,5 | 23 | 20 | 98 | 44,5 | 6 | 64 | 0,13 |
½ | 15 | 15 | 62 | 32 | 25 | 98 | 48 | 16,3 | 30 | 0,21 |
¾ | 20 | 16,3 | 69 | 39 | 31 | 122 | 58 | 29,5 | 30 | 0,36 |
1 | 25 | 19,1 | 83 | 49 | 38 | 122 | 62 | 43 | 30 | 0,55 |
1¼ | 32 | 21,4 | 96 | 59 | 48 | 153 | 78 | 89 | 25 | 1,00 |
1½ | 40 | 21,4 | 108 | 73 | 54 | 153 | 85 | 230 | 25 | 1,50 |
2 | 50 | 25,7 | 126 | 86 | 67 | 162 | 96,5 | 265 | 25 | 2,02 |
