Description

ADCENG is the only manufacturer of liquefied petroleum gas vapourisers in South Africa and designs and manufactures under the ADCENG label electrically-heated or direct-fired units in eight models with capacities ranging from 25 to 250 kg/h LPG and larger.

All models are manufactured to SABS recommendations.

Range

Electrically-heated units are available in capacities of 25, 30, 75, 100, 150, 200 and 250 kg/h LPG. While direct-fired units are made with capacities of 80 or 160 kg/h LPG.

ADCENG vapourisers are robust and designed for low maintenance, long-life operation.

Units can be manifolded together in order to give larger capacities with economical standby facilities.

Electric units

The electrically-heated vapourisers incorporate explosion-proof element housings. The elements are immersed in an ethylene glycol heat transfer fluid. The ethylene glycol transfers heat to a tube system in which incoming liquid gas is vaporized. A liquid trap acts as a safety device to prevent liquid passing into the gas discharge line in the event of a power failure or demand exceeding vapouriser capacity. Heating elements are thermostatically controlled to maintain the heat transfer liquid at the correct operating temperature.

Direct-fired units

Direct-fired vapourisers incorporate a pressure vessel heated by a gas burner supplied from the vapour outlet line. A thermostat in the pressure vessel maintains the correct temperature by controlling the gas burner supply. As with electrically-heated vapourisers, a liquid trap prevents ingress of liquid gas into the vapour line. A pilot burner is provided and gas supply to the burners will be closed down automatically should the pilot flame fail.

Selection and Installation

The vapouriser selected should have adequate capacity to cater for the total load of all consumption points. If a vapouriser is overloaded or an excessive demand for gas is experienced, supply will be limited to the vapouriser’s capacity by the liquid inlet valve. Electrically-heated units are most popular because they require servicing only twice a year. Direct-fired units, while simply installed where insufficient or no electricity supply exists require monthly servicing. Selection should be made using the capacity tables below. Installation must be carried out in accordance with instructions accompanying each unit.

A 75E vapouriser

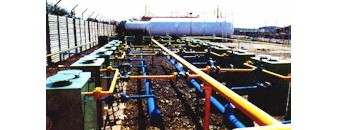

A typical multi-unit installation of 160DF vapourisers

A 30E vapouriser

Models
30E
75E
100E
150E
200E
250E
8ODF
160DF
Capacity (kg/h) 30 75 100 150 200 250 80 160
Pressure (KPA) 1720 1720 1720 1720 1720 1720 1720 1720
Heat transfer fluid (litres) 18 120 120 120 240 240
Heat vapouriser (mm) 950 1090 1090 1090 1190 1190 880 880
Height stand (mm) 600 - - - - - 445 445
Consumption – pilot (MJ/h) - - - - - - 1,16 1,0
Consumption – main burner (MJ/h) - - - - - - 51 105
Consumption (KW) 4.0 12 18 22.5 30 37.5 - -
